Thermacore Series – High Temperature Capability

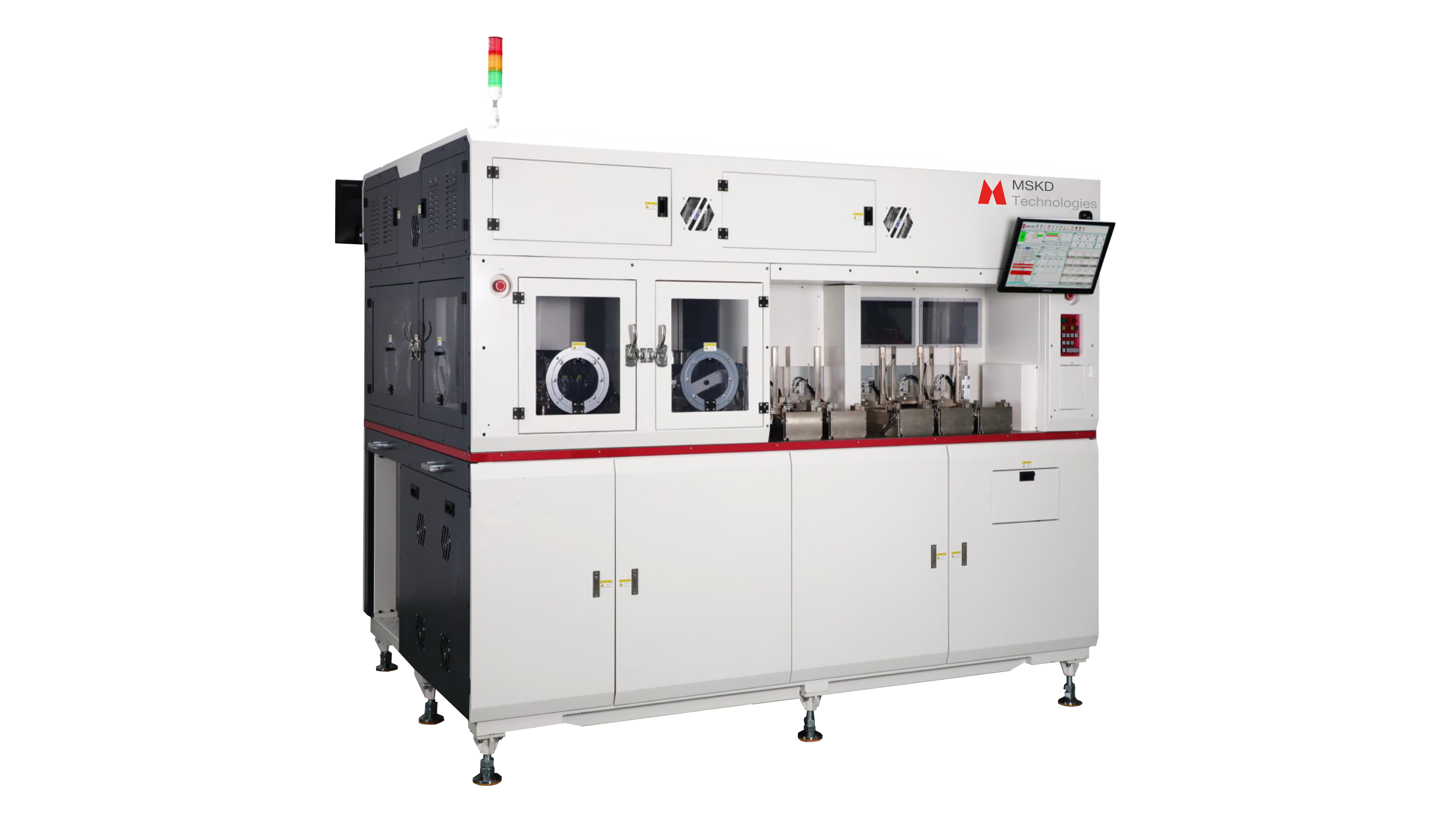

Our ThermaCore Series P110 High-Temperature Pick & Place Test Handler is designed for multi-functional testing and sorting, catering to diverse customer needs.
It supports low, normal, and high-temperature testing, sorting, and classification of components such as MSOP, QFN, LGA, BGA, and CSP (3×3 to 10×10 mm). Additionally, it integrates advanced imaging systems to ensure high-quality product output.
Key Features
- Up to 6000 (8 Sites, using QFN4x4 as an example)
- High Precision ATC System, Support Temperature Range -55~150°C ± 1°C
- Equip with Top Image and 3D5S Image Detection
- Plate Changing Manipulator that ensure safety and reliability

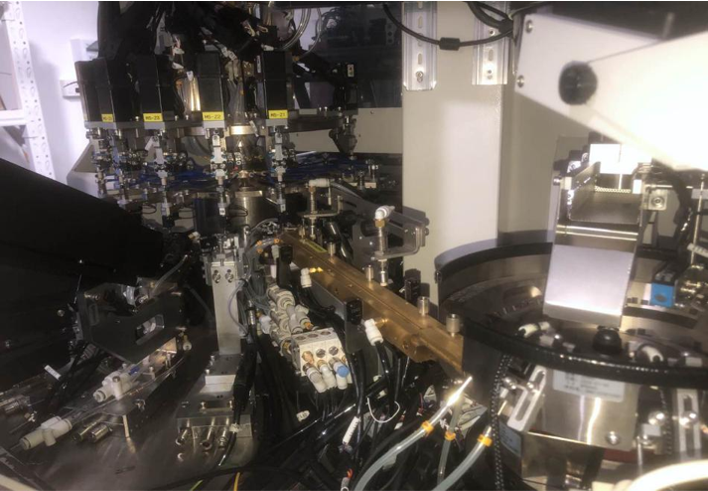

Vibrating plate loading with top image configuration and 3D5S capabilities, optional polarity testing, offering rich configurations and powerful functions.

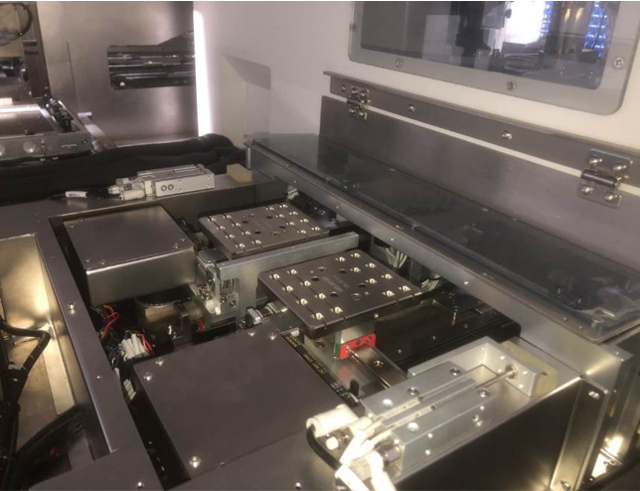

Cross-feeding minimizes waiting time for mechanical actions, enhancing efficiency.

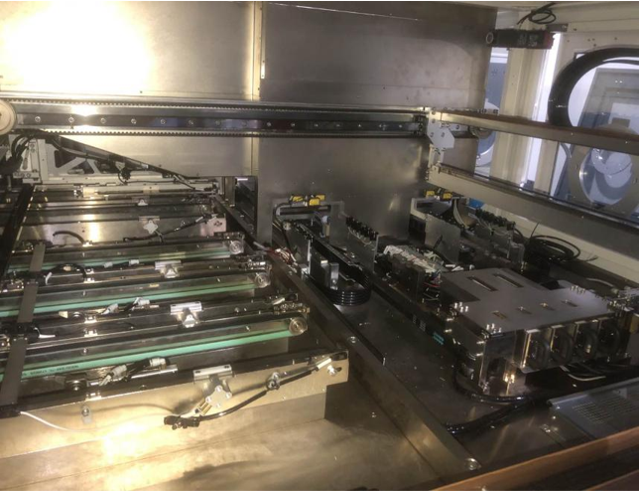

The unloading structure includes a material box (one large and four small, optional) and a material tray structure, making it suitable for a wider range of scenarios.
